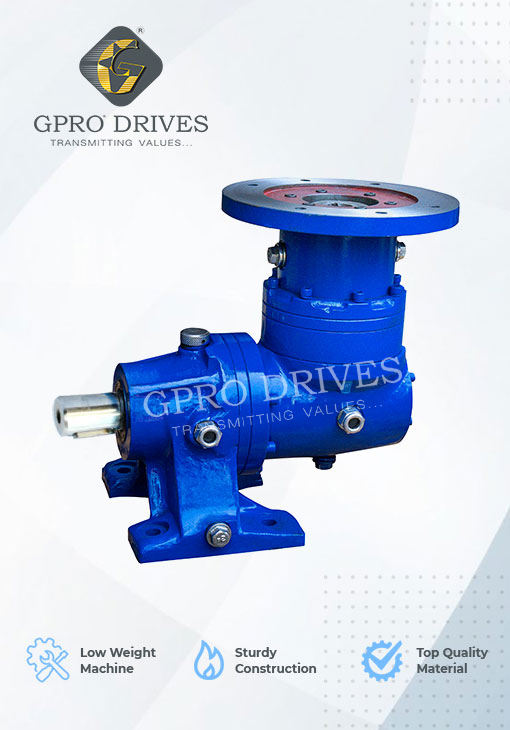

Bevel Planetary Gearbox
You're in: Products » Bevel Planetary Gearbox
Leading Bevel Planetary Gearbox Manufacturers In India
Our company is a celebrated name in the Bevel planetary gearbox manufacturers.
These are the most suitable amalgam or combination of a bevel gearbox and a planetary gearbox.
These categories of gearboxes are used for transmitting power at 90 degrees with high efficiency.
They come in mounting types like shaft mounting, foot mounting and flange mounting.
And with our skilled professionals by our side, the products we come up with are most of the times free from any defects.
Moreover, we offer these gearboxes at a very affordable price as well.
Different Models Of Bevel Planetary Gearbox
The products we offer are durable with a long lasting functional life. The quality of raw materials we use for manufacturing these products are par excellence, ensuring products with optimum quality.

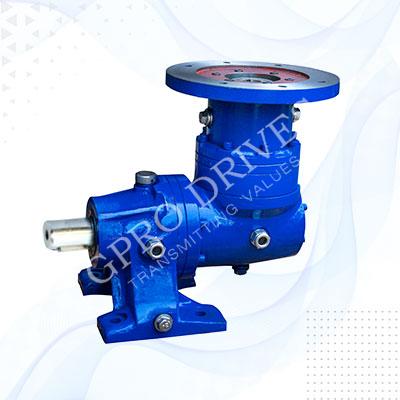

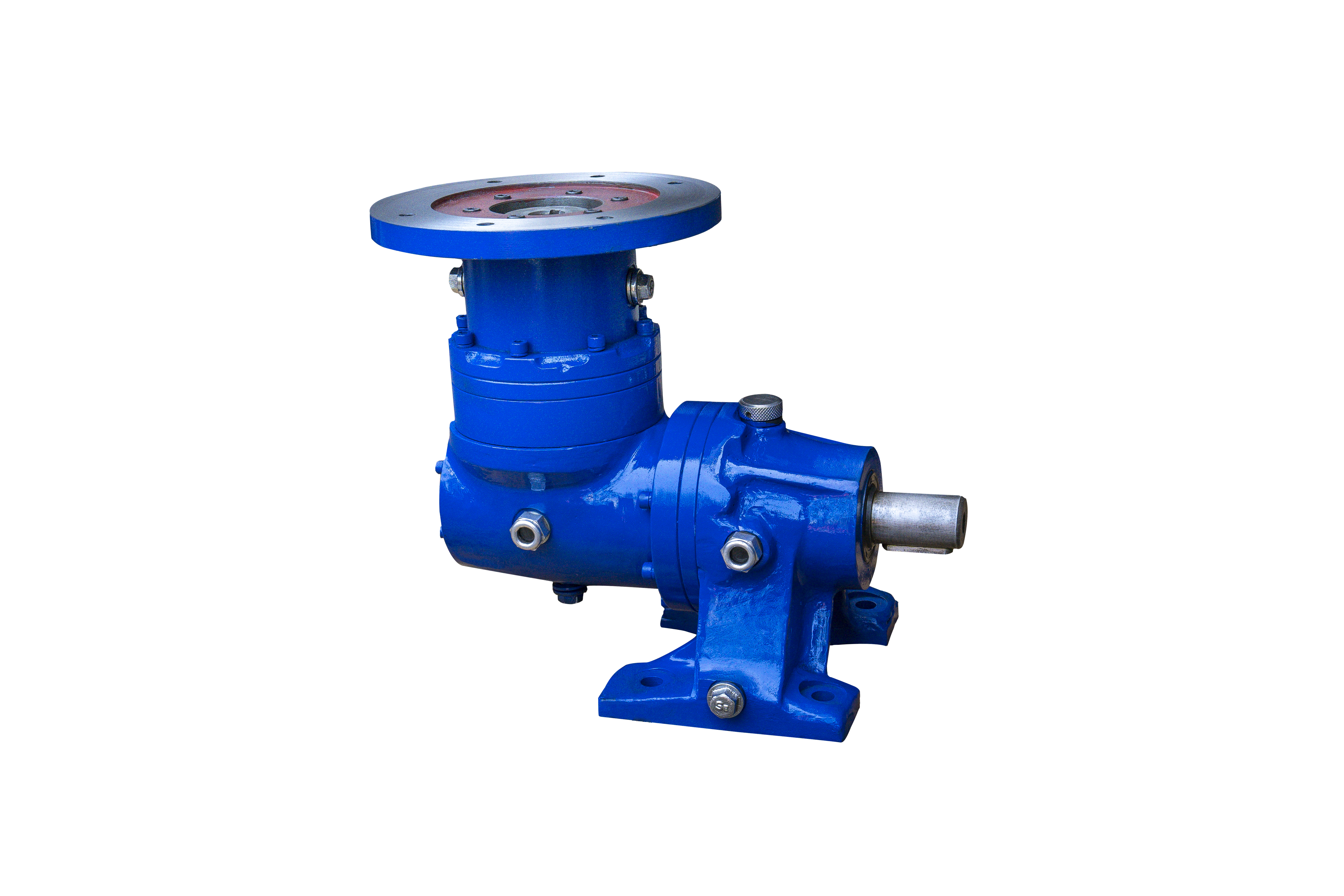

1. Mounting - Foot
Input: Hollow, Orientation : B3

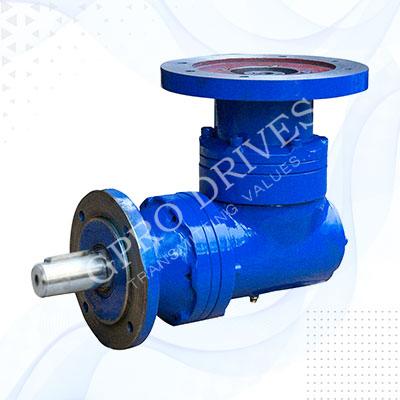

2. Mounting - Flange
Input: Hollow, Orientation : B3
Features of these Bevel Planetary Gearboxes
Let us have a look at some of the product specifications and features of these Bevel Planetary Gearbox:
- Mounted at 90 degree with each other
- Arrangement of through and through hollow shafting
- Possess a considerably high reduction ratio
- Show superlative performances
- A long lasting functional life
- The input power they require varies from fractional HP to 500 HP
- Support torque of range: 4kgm to 45000kgm
- Ratio of 3:1 to 15000:1
We Give Best Business Solution
It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.
× Technical Specifications Of Bevel Planetary Gearbox
| Type | Planetary |
| Mounting | Foot / Flange/ Agitator |
| Input |
|
| Orientation |
|
| Efficiency | 96% per stage |
| Ambient Temp. | 40 Deg. C |
| Allowable Temperature Rise | 45 Deg. C above ambient temp. |
| Ratio Range | From 3.63:1 Upto customer requirement |
| Output Torque Range | From 12 Kg.m To 60,000 Kg.m |
| Input Power | From 0.16 Hp/0.12kW To 500 Hp/375kW |
| Max. Input Speed | 1440 rpm (For Higher / Lower Speed Consult GPRO) |
| Paint Shade |
|
| Method of Cooling |
|
| Lubrication |
|
| Standard Accessories | For Orientation V5 & V6 Oil Cup Assembly will be provided |
| Applicable Standards | AGAM , ISO, IS |
| Advantage | Input & Output are at right angle to each other hence occupies less length |
| Disadvantage | Costly compare to pure Planetary |
| Application | Material handling, Chemical, Sugar, Cement,Paper, Rubber, Marine, Food Industry, Automation, Oil & Gas, Textile and much more |
