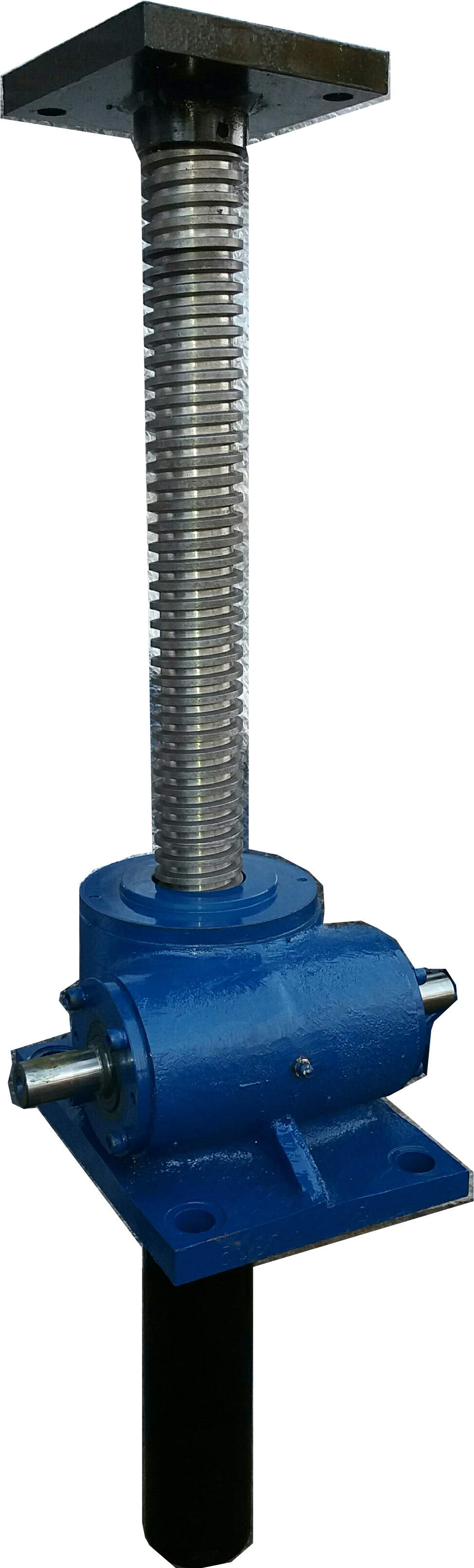

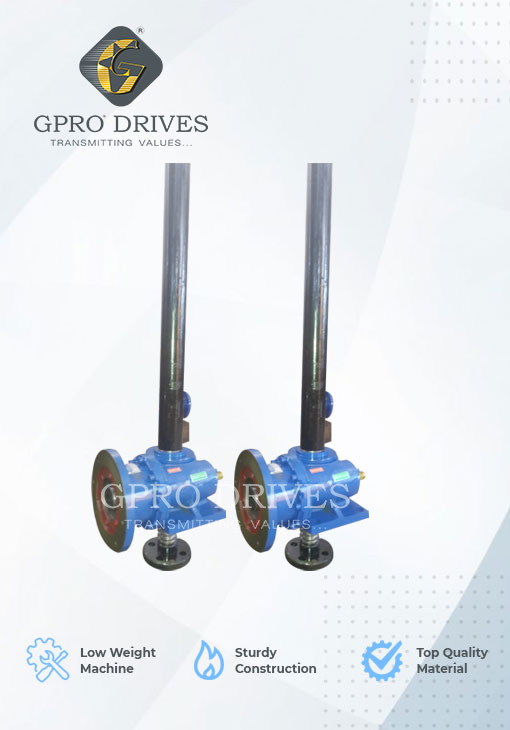

SCREW-JACK

Leading Screw Jack Manufacturers In India

Being one of the most trusted and dedicated manufacturers and suppliers of the lot, our company does justice to its name by providing its clients with Screw Jacks of supreme quality.

They are produced under strict supervision of our professionals and thus use premium quality raw materials, making these products more durable, mechanically strong, precisely functioning, and so on.

Influenced by the product’s demand in the markets, we have decided to make it available to the customers in various shapes and sizes requested.

Further, we make it a point to process this product through a number of significant checks and procedures, ensuring superlative quality and functionality.

Among the other screw jacks, we have expertise in manufacturing Mechanical Screw jacks.

Features of these Screw Jack

Let us have a look at some of the product specifications and features of these Screw Jack:

Capacity of 1.5 – 20 T
Withstand a maximum load of 26 tons
Withstand a maximum static load of 100 tons
Compact structure
Optimum strength
Offer a long lasting functional life
Highly durable
Sufficiently enough high load bearing capacity

We Give Best Business Solution

It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.

× Technical Specifications Of Screw Jack

Type	Worm
Mounting	Casing
Input	Male Free Shaft (For Mounting Coupling, Pulley, Sprocket etc.), Input Hollow with Bell Housing arrangement
Orientation	B1 U (Upright), I (Inverted), B3 (Horizontal)
Efficiency	60% Max
Ambient Temp.	40 Deg. C
Allowable Temperature Rise	45 Deg. C above ambient temp.
Ratio Range	8:1, 24:1
Lifting Capacity	From 0.5 Ton To 100 Ton
Lifting Height	From 5 mm To 2000 mm
Operation Type	Hand Operated, Motorised
Screw Type	Rotating Screw with Attachment Translating Nut Type Translating Screw Type
Paint Shade	STD : RAL Blue SPL : Special color can be provided against specific customer requirement
Method of Cooling	STD : Splash Type Lubrication air cooled SPL : Forced Cooling can be provided against specific customer requirement
Lubrication	ISO VG 220/320 Synthetic Base Oil STD : Gearbox supplied without oil SPL : Gearbox supplied with oil against specific customer requirement
Standard Accessories	Nill
Optional Accessories	Top Plate,Clavis, Trunion Mounting Plate, Bellow
Applicable Standards	AGAM , ISO, IS
Advantage	Compact in Size
Disadvantage	Nil
Application	Used in Overhead Crane Application
