Leading Electric Winch Manufacturers In India

Our company excels in manufacturing electric winches.

They are fitted with an electric motor.

Technically, an electric winch can be said a lifting device consisting of a horizontal cylinder turned by a crank on which a rope or cable winds.

Designed especially for the purpose of serving applications where space is crucial and important, these winches are best suitable.

Further, for smoother operation, they work on heat-treated sintered iron gears enhancing smoother operations.

Different Models Of Electric Winch

The products we offer are durable with a long lasting functional life. The quality of raw materials we use for manufacturing these products are par excellence, ensuring products with optimum quality.

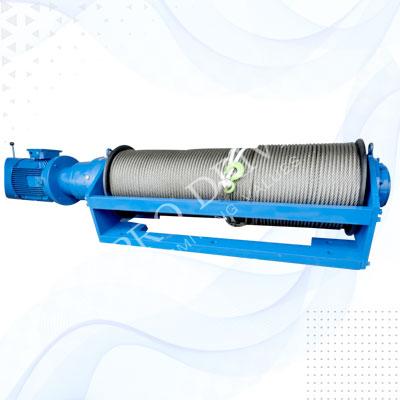

1. Electric Winch

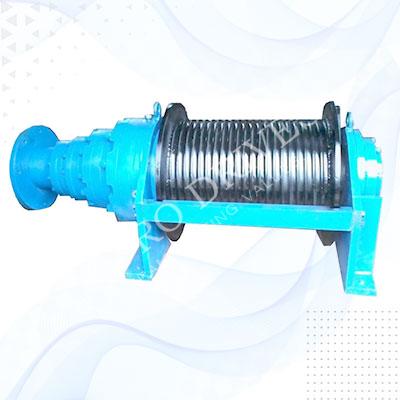

2. Electric Winch

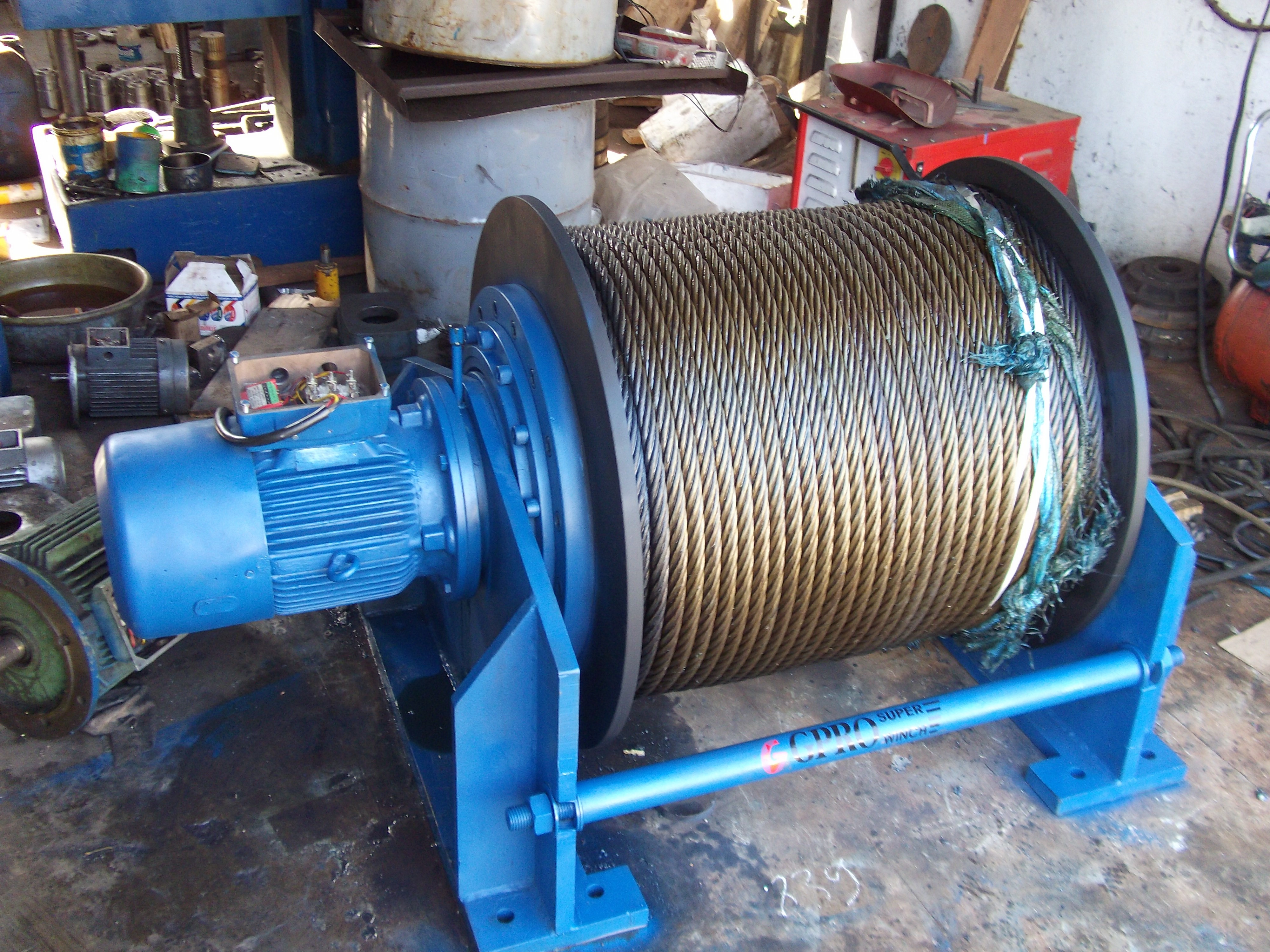

3. Electric Winch

Features of these Electric Winches

Let us have a look at some of the product specifications and features of these Electric Winch:

  • Consist of a precision needle bearing for high load areas offering lower friction level and longer life
  • Possess an emergency crank handle
  • Comprise of a high impact case providing weather resistance and further protect the internal components.
  • Durable hook safety snap keeping the loads attached,available in varies AC and DC models
  • Comprise of a superior stainless steel front plate providing high resistance to corrosion

We Give Best Business Solution

It we caters to the needs of our clients by manufacturing, exporting and supplying the various equipment’s such as Planetary Gearboxes, Hydraulic Winch, Screw Jack, Bevel Drives, Worm Drives, and etc.

× Technical Specifications Of Electric Winch

TypePlanetary Winch
MountingFoot
Input
  • Hollow to suite Electric Motor
Orientation
  • B1 (Base Mounted)
  • W1 (Wall Mounted)
  • C1 (Ceiling Mounted)
Type of OperationLifting, Pulling
Ambient Temp.40 Deg. C
Allowable Temperature Rise
45 Deg. C above ambient temp.
Capacity Range
From 50 Kg To 50,000 Kg
Speed Range
From 1 m/min To 20 m/min
Wire Rope OD
From Ø6 mm to Ø40mm
Wire Rope Length
From 10m to 1000m
No of wire rope falls
  • 1 to 4
Wire Rope Construction
  • Steel Core, Fibre Core
Drum
  • Single Grooved Drum, Double Grooved Drum
Brake
  • Brakeing through Electromagnetic DC Brake
Wire Rope Type
  • Galvanised, Ungalvanised
Input Power
  • From 0.16 Hp/0.12kW
  • To 50 Hp/37.5kW
Electric Control Panel
  • Panel with MCB, Single Phase Preventor, Contactor,
  • Pendant Type Swithch can be provided
  • Remote control operated Panel can also be provided
Max. Input Speed
  • 1440 rpm (For Higher / Lower Speed Consult GPRO)
Paint Shade
  • STD : RAL Blue
  • SPL : Special color can be provided against specific customer requirement
Method of Cooling
  • STD : Splash Type Lubrication air cooled
Lubrication
  • ISO VG 220/320 Synthetic Base Oil
  • STD : Winch supplied without oil
  • SPL : Winch supplied with oil against specific customer requirement
Standard AccessoriesNill
Applicable StandardsAGAM , ISO, IS
AdvantageHigh Efficiency, Inline, High Torque Density, High Torque to weight ratio
DisadvantageNoise level in some case will be upto 70dB
ApplicationMaterial handling, Chemical, Sugar, Cement,Paper, Rubber, Marine, Food Industry, Automation, Oil & Gas, Textile and much more
